DANF RA-F15 15mm OR1/2" BSP HORZ ANG

Part Number: DF33.0426

£20.53
Ex VAT
£24.64
Inc VAT
£20.53
Ex VAT
£24.64
Inc VAT
Out of stock. Available to order. Contact us for lead time.

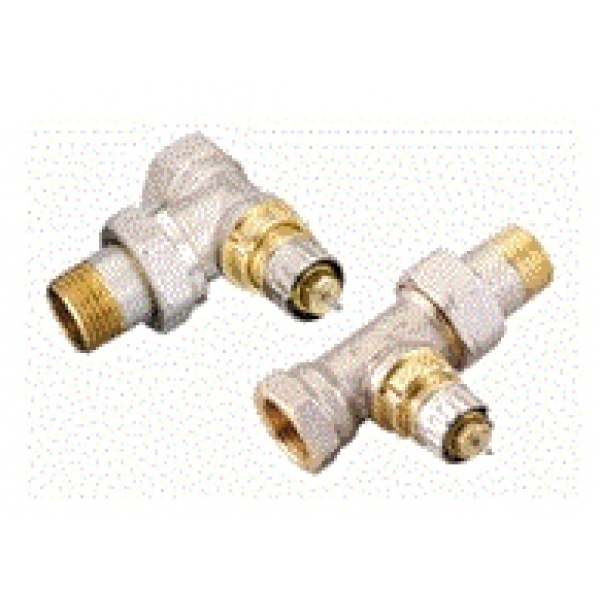

Danfoss RA-F15 15mm OR1/2I BSP Horizontal Angled

For use in commercial 2-pipe systems. RA-N valves are available in 3/8”, 1/2” and 3/4” sizes in angled and straight pattern versions. RA-N valves can be used with all RA2000, RAS-D2 & RAS-C2 sensors, although valve capacity is reduced if RAS-C2 or RAS-D2 sensors are used.

Valves with pre-setting allow the commissioning engineer to precisely set the calculated flow of water to individual radiators without the need for costly and inaccurate temperature measurements. They also reduce the function of the lockshield valve to one of isolation rather than regulation.

In the Danfoss Randall range, pre-setting is achieved by means of a separate pre-setting device integrated into the valve body, and does not interfere in any way with the degree of opening of the valve cone, as seen with other pre-setting systems.
Pre-setting is achieved by means of a calibrated setting ring on the valve body, which is covered once the radiator thermostat is mounted.

Features and Benefits:

  • Provides accurate flow regulation in 2-pipe systems.
  • Wide range of valve body sizes available
  • Easy to set adjustment, does not affect valve lift
  • Concealed setting, prevents unauthorised adjustment
  • Compatible with all RA2000, RAS-C2 & RAS-D2 sensors
  • Type RA-N 15
  • Presetting Yes
  • Horizontal angled
  • Dimension 15 DN
  • kv - Range at Xp = 0.5 - 2.0 K 0.04 -0.7
  • Max. Working Pressure: 10 bar
  • Max. Differential Pressure: 0.6 bar
  • Connection inlet: 15mm or 1/2
  • Test Pressure: 16 bar
  • Connection outlet: 1/2" BSP
  • Max. Water Temperature: 120°C

Danfoss RA-F15 15mm OR1/2I BSP Horizontal Angled

For use in commercial 2-pipe systems. RA-N valves are available in 3/8”, 1/2” and 3/4” sizes in angled and straight pattern versions. RA-N valves can be used with all RA2000, RAS-D2 & RAS-C2 sensors, although valve capacity is reduced if RAS-C2 or RAS-D2 sensors are used.

Valves with pre-setting allow the commissioning engineer to precisely set the calculated flow of water to individual radiators without the need for costly and inaccurate temperature measurements. They also reduce the function of the lockshield valve to one of isolation rather than regulation.

In the Danfoss Randall range, pre-setting is achieved by means of a separate pre-setting device integrated into the valve body, and does not interfere in any way with the degree of opening of the valve cone, as seen with other pre-setting systems.
Pre-setting is achieved by means of a calibrated setting ring on the valve body, which is covered once the radiator thermostat is mounted.

Features and Benefits:

  • Provides accurate flow regulation in 2-pipe systems.
  • Wide range of valve body sizes available
  • Easy to set adjustment, does not affect valve lift
  • Concealed setting, prevents unauthorised adjustment
  • Compatible with all RA2000, RAS-C2 & RAS-D2 sensors
  • Type RA-N 15
  • Presetting Yes
  • Horizontal angled
  • Dimension 15 DN
  • kv - Range at Xp = 0.5 - 2.0 K 0.04 -0.7
  • Max. Working Pressure: 10 bar
  • Max. Differential Pressure: 0.6 bar
  • Connection inlet: 15mm or 1/2
  • Test Pressure: 16 bar
  • Connection outlet: 1/2" BSP
  • Max. Water Temperature: 120°C

Technical Specifications

Manufacturer Part Number 013G0153
