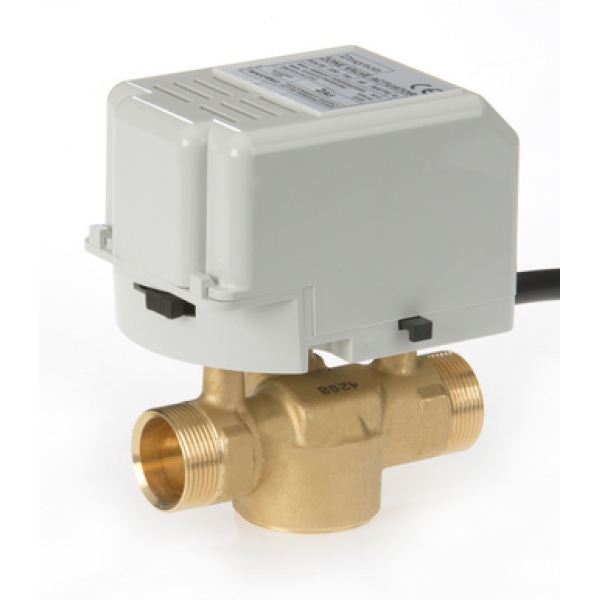

Drayton 2 Port Motorised Valves 22mm

Drayton 2 Port Motorised Valves 22mm

This model features a new "snap-on" actuators and have industry-standard wiring and dimensions. In 22mm size.

Product features:

• Positive fuel saving control
• 100% tight shut off
• Easily replaces most makes

Technical features:

• Manual lever and valve position
• Replaceable motors
• Replaceable actuators
• Standard motor voltage: 230V 50Hz 5 watts
• Valve operation: 2 Port standard valves –energise to open
• Diverter: energise to open port A
• Operating time: 2 Port motor 14 secs., spring return 6 secs.
• Max. static pressure:8.6 bar
• Water temperature: 93ºC max., 2°C min
• Max. ambient temperature: 52ºC
• Valve body: Brass forging
• Connections: 22mm compression; 28mm compression
• Lead length: 1m
• Switch ratings: 24V – 230V a.c. 3(1)A

Technical Specifications

Frequently Asked Questions

No Product FAQs available.

Documents

• Drayton 2 Port Motorised Valves 22mm -Drayton 2 Port Motorised Valves Technical Datasheet(851.52 KB)
• Drayton 2 Port Motorised Valves 22mm -Drayton 2 Port Motorised Valves Installation Guide(83.08 KB)
