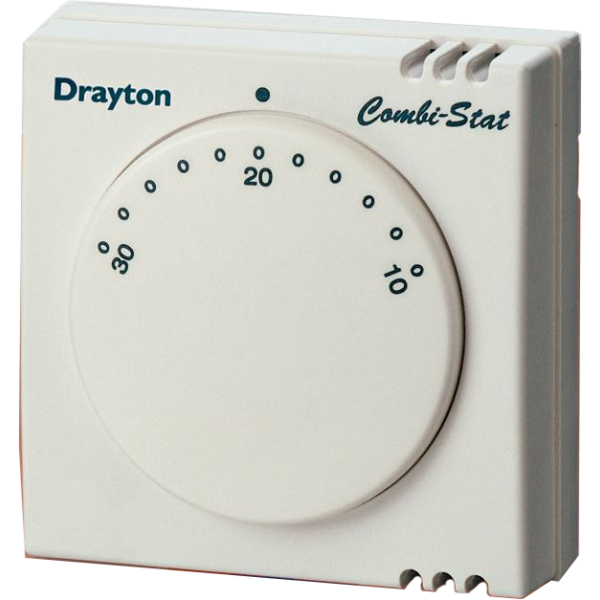

Drayton Combi-Stat RTS8 Thermostat

Drayton Combi-Stat RTS8 Thermostat

Using a simple traditional dial, the Combi-Stat provides accurate temperature control, suitable for all 2 or 3 wire conventional and combination boilers. The Combi-Stat is bi-metal, so you will hear it click on and off.

As a versatile solution, Combi-Stat offers 2 or 3 wires, 24 or 240 volts, and has a range of 0.6 to 6 amps. The Combi-Stat Designed for fixed wiring only to comply with the current IEE regulations.The Combi-Stat provides accurate temperature control, suitable for 2 or 3 wire combination boilers (with current up to 6A)

Product features:

• Range limiting stops
• Set point locking
• Surface or conduit box mounting
• Double insulated

Technical information:

• Sensing element: Bi-metal
• Temperature range: 10°C to 30°C
• Switch rating:6(2)A 230V a.c./d.c.
• 24-230V a.c./d.c.
• Switch type:S.P.S.T.
• Differential: 1°C typical

Standards Compliance:

• Relevant EC Directives 2006/95/EC Low Voltage Directive
• 2004/108/EC Electromagnetic Compatibility Directive
• Applied Standards EN60730-1; EN60730-2-9

Technical Specifications

Frequently Asked Questions

No Product FAQs available.

Documents

• Drayton Combi-Stat RTS8 Thermostat -Drayton Comb-Stat RTS8 Thermostat Installation Guide(1.07 MB)
• Drayton Combi-Stat RTS8 Thermostat -Drayton Comb-Stat RTS8 Thermostat Technical Datasheet(746.79 KB)
