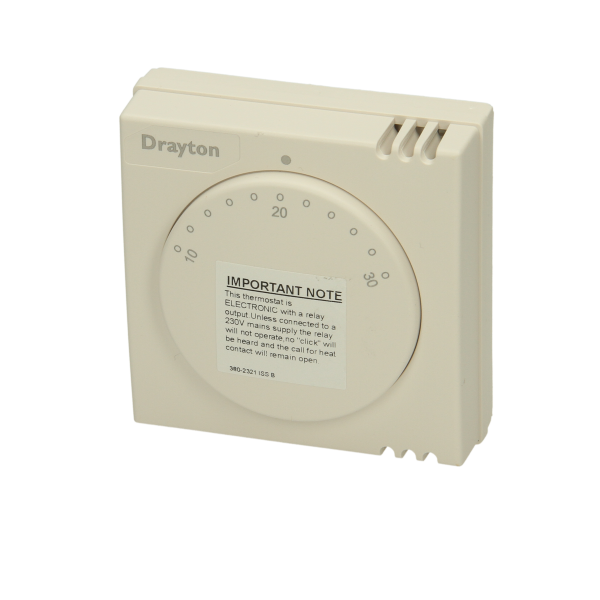

Drayton Room Thermostat RTS1

Drayton Room Thermostat RTS1

The RTS range of thermostats utilise electronic sensing to provide accurate temperature control.

Features and Benefits:

• Range Limiting Stops
• Set Point Locking
• Surface or Conduit Box Mounting
• Double Insulated
• RTS1:Standard Model
• Sensing Element: Electronic
• Temperature Range:RTS1, 2, 4, & 9
• 10°C to 30°C
• RTS3
• 3°C to 10°C
• RTS10
• 14°C to 30°C
• Switch rating:
• 2(1)A 230V a.c.
• Switch type:
• RTS1, 2 & 3
• S.P.S.T.
• RTS4, 9 & 10
• S.P.D.T. (volt free)
• Differential:
• RTS1, 2, 4, 9 & 10
• <0.6°C at 4°/hour
• RTS3
• 1°C typical

Standards Compilance:

Relevant EC Directives 2006/95/EC Low Voltage Directive 2004/108/EC Electromagnetic Compatibility DirectiveApplied Standards EN60730-1; EN60730-2-9

Technical Specifications

Frequently Asked Questions

No Product FAQs available.

Documents

• Drayton Room Thermostat RTS1 -Drayton Room Thermostat Technical Datasheet(478.33 KB)
• Drayton Room Thermostat RTS1 -Drayton RTS Thermostat Installation Instructions(28.63 KB)
