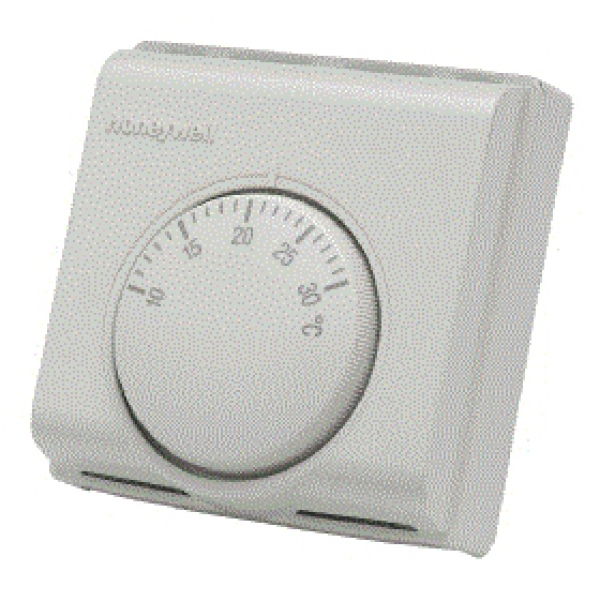

Honeywell Rm Stat 10-30C T4360B1015

Honeywell Room Thermostat 10-30C T4360B1015

For special applications involving control of gas valves, zone valves, circulation pumps, ventilators, boilers etc. in heating systems

Features and Benefits:

• Wall mounted line voltage room thermostat
• Protection class: IP30
• Lamp is supplied potential free, and can be wired to indicate operating mode, or boiler lock out
• Terminal max. wire size: 4mm2
• Temp. setpoint range: 10...30C
• Temperature element: vapour filled
• Temperature element place: built in
• Heating application only
• Earthing: double insulated
• Housing (HxWxD): 83mm|83mm|40mm
• Suitable for: electric heat
• Switch function/capacity: 16 A

Technical Specifications

Frequently Asked Questions

No Product FAQs available.

Documents

• H001551 - T4360B1015 Specifications (392.75 KB)
