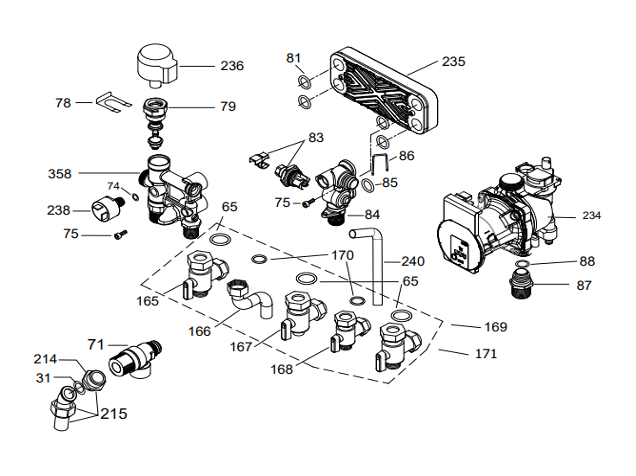

| View No |
Part Code |
Part Name |
| 31 |
15311019000011 |
Klingerite Gasket (18x12,5x3mm) |
| 65 |
15311019000009 |
Connection Gasket |
| 71 |
15311009000004 |
Safety Valve (3 Bar) |
| 74 |
15311019000012 |
Gasket 1/4"-10,5x6x2mm |
| 75 |
15311019000031 |
M5x22 Allen Head Screw |
| 78 |
15311009000007 |
Clip (3-Way Valve) |
| 79 |
15311660500000 |
3-Way Valve Inner Kit |
| 81 |
15311009000011 |
Plate Heat Exchanger O-ring 18,64 x3,53 |
| 83 |
15311660500011 |
Water Flow Sensor Group |
| 84 |
15311009000002 |
Inlet Manifold |
| 85 |
15311009000013 |
Inlet Manifold - Pump Connetion O-Ring 17x4 |
| 86 |
15311009000009 |
Inlet Manifold U Clip |
| 87 |
15311009000003 |
Pump Connection Nippel |
| 88 |
15311009000014 |
Nipple O-ring 20,29 x 2,62mm |
| 358 |
1521101047 |
Outlet Manifold - Without Filling Tap (UK) |
| 165 |
15311009000017 |
CH Flow Connection- ¾ "x 22 Ball Valve (Red) |
| 166 |
15311009000019 |
DHW Flow Connection Pipe |
| 167 |
15311009000020 |
Gas Inlet Connection - ¾ "x 22 Ball Valve (Yellow) |
| 168 |
15311009000018 |
DWH Return Connection - ½ "x 15 Ball Valve |
| 169 |
15311009000016 |
CH Return Connection - ¾ "x 22 Ball Valve (Blue) |
| 170 |
15311019000071 |
DHW Gasket (UK) |
| 171 |
1521104002 |
Valve Set (UK) |
| 214 |
15311660500030 |
Safety Valve (3 Bar) Outlet Nippel (UK) |
| 215 |
15311018000024 |
Safety Valve Drain Group (UK) |
| 235 |
15311024000019 |
Plate Heat Exchanger (10 Plates-Condevo) |
| 236 |
15311007000004 |
3-Way Valve Motor (SHINEUI) |
| 238 |
15311011000018 |
Water Pressure Switch |
